VIAN POWER KIT 1 TIL 3 PUMPER + SIRKULASJON + AIR

VIAN POWER KIT 1 TIL 3 PUMPER + SIRKULASJON + AIR

NOK10 790,00 inkl. mva.
På lager
Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)

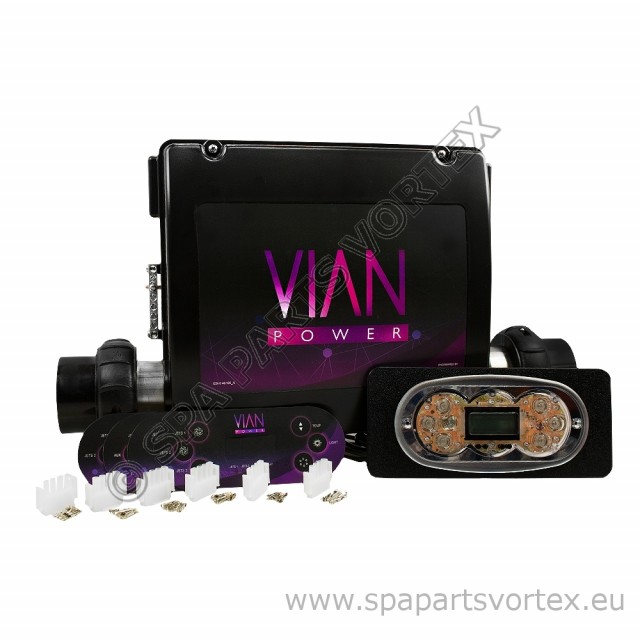

Vian Power Kit 1 til 3 pumper + sirkulasjon + Air

Her får du alt i en pakke, produsert av BALBOA og er kompatibelt med alle displayer til BP serien / TP serien.

Ny elektronikk/ styring, 3kw varmekolbe, display, plugger til evt ombygging, ramme til display.

Kan stort sett benyttes i alle oppsett.

Varmekolbe har 2" inn / utløp.

Enheten er WIFI ready, WIFI enhet kjøpes separat.

Folie til display kjøpes separat avhengig av bl.a hvor mange pumper osv..


Type of Product: Vian Power Electronic Control pack
Manufacturer: Balboa
Power: Volts: 230vac Hz: 50
Specifications: From 1 Pump no air, up to 3 Pumps + Circulation Pump + Air
Compatible With: Any retrofit system, suitable for upgrades.
Connections: 2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components.
Dimensions: Length: 500 mm (inc heater) 320 mm (box casing only) Width: 120 mm Height: 300 mm Topside: 178 mm x 86 mm
Topside Buttons: Overlays included to use depending on your outputs: 1 Pump no air, 1 Pump with air, 2 Pumps with air, 3 pumps with air.
Items Included: x6 AMP connector 4 pins, x1 AMP connector 2 pins, x1 Bezel,  x1 Topside, x1 System Vian Power 3Kw 825 CZm8
Additional Notes: System Outputs:

This system has been designed to be able to run from 1 pump single speed upto 3 pumps + circ pump + blower.

Setup Circ. Pump Pump 1 Pump 2 Pump 3 Blower
1 YES 2-Speed 1-Speed 1-Speed YES
2 YES 2-Speed 1-Speed 1-Speed None
3 YES 2-Speed 1-Speed None YES
4 YES 1-Speed 1-Speed 1-Speed YES
5 YES 1-Speed 1-Speed 1-Speed None
6 YES 1-Speed 1-Speed None YES
7 None 2-Speed 1-Speed 1-Speed YES
8 None 2-Speed 1-Speed 1-Speed None
9 None 2-Speed 1-Speed None 1-Speed
10 YES 2-Speed 1-Speed None None
11 YES 1-Speed 1-Speed None None
12 YES 2-Speed None None 1-Speed
13 YES 1-Speed None None 1-Speed
 14  YES 2-Speed None None None
15 YES 1-Speed None None None
16 None 2-Speed 1-Speed None None
17 None 2-Speed None None 1-Speed
18 None 2-Speed None None
